CONSTRUCTION EQUIPMENT
CAMERA, THERMAL IMAGING
Image for reference only
Actual item may look different
Click on image for larger view
Click on above thumbnails for alternate view
Product Information
- THERMAL IMAGING CAMERA
- FLIR E6
- Detector Type Uncooled microbolometer
- IR Resolution 160 120 pixels
- List of ContentS Infrared camera Hard transport case Battery (inside camera) USB cable Power supply/charger with EU, UK, US and Australian plugs Printed documentation
- Packaging Size 385 x 165 x 315 mm (15.2 x 6.5 x 12.4 in.)
- Set-up Commands Local adaptation of units, language, date and time formats
- Spectral Range 7.5 13 m
- COMPLIANCE & CERTIFICATIONS
- Certifications UL, CSA, CE, PSE and CCC
- CONNECTIONS & COMMUNICATIONS
- AC Operation AC adapter, 90 260 VAC input, 5 VDC output to camera
- Interface USB Micro: Data transfer to and from PC and Mac device
- ENVIRONMENTAL
- Operating Temperature Range 15 C to +50 C (+5 F to +122 F)
- IMAGING & OPTICAL
- Camera size (L x W x H) 244 x 95 x 140 mm (9.6 x 3.7 x 5.5 in.)
- Camera weight incl battery 0.575 kg (1.27 lb.)\
- Color palettes Black & white, iron, and rainbow
- Display 3.0 in. 320 240 color LCD
- f-number 1.5
- Field of view (FOV) 45 34
- Focus Focus free
- Image Adjustment Automatic/Manual
- Image Frequency 9 Hz

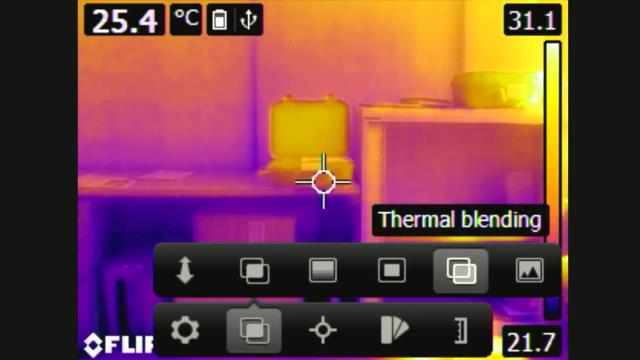

- Image Modes Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
- Minimum Focus Distance 0.5 m (1.6 ft.)
- Multi Spectral Dynamic Imaging (MSX) IR image enhanced with visible camera detail
- Picture-in-Picture IR area on visual image
- Spatial resolution (IFOV) 5.2 mrad
- Digital Camera Resolution/FOV 640 480/55 43
- MEASUREMENT & ANALYSIS
- Accuracy 2 C ( 3.6 F) or 2% of reading, for ambient temperature 10 C to 35 C (+50 F to 95 F) and object temperature above +0 C (+32 F)
- Object Temperature Range 20 C to +250 C ( 4 F to +482 F)
- Reflected apparent temperature correction Automatic, based on input of reflected temperature
- Thermal Sensitivity/NETD <0.06 C (0.11 F) / <60 mK
- Spotmeter and Area Center spot; box with min./max.
- POWER
- Charging system Battery is charged inside the camera or in specific charger.
- Charging Time 2.5 hours to 90% capacity in camera. 2 hours in charger.
- Power Management Automatic shut-down
- Battery type & operating time Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use
- STORAGE MEDIA
- File Formats Standard JPEG, 14-bit measurement data included
| Manufacturer: | FLIR |
|---|---|
| Model: | E6 |
| Daily: | $200.00 |
| Weekly: | $800.00 |
| Monthly: | $2,000.00 |
* Prices are subject to change.
