EXCAVATORS

EXCAVATOR, 10' - 8,200 LB U35

Where to find EXCAVATOR, 10 - 8,200 LB U35 in Mycity
Where to find EXCAVATOR, 10 - 8,200 LB U35 in Mycity

Image for reference only
Actual item may look different
Click on image for larger view

  • Where to find BOND 6 FT. BAR in Mycity
  • Where to find BOND 6 FT. BAR in Mycity

Click on above thumbnails for alternate view

Product Information

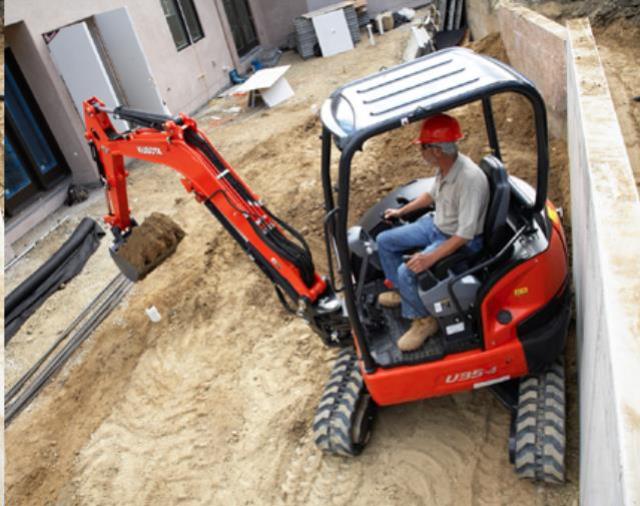

  • Kubota U35

  • Buckets Available: 12", 24" (with teeth) / 36" Cleanout (no teeth)
  • Unit is equipped with hydraulic thumb

  • Operating Weight (lbs.) 8,129
  • Max. Dig Depth 11'
  • Width 5'7"
  • Height 8'0"

  • Length (transport) 16'7"
  • Ground Clearance 11.6"
  • Max. Dump Height 12'6"
  • Max. Dig Height 17'1"
  • Max. Reach at Ground Level 17'6"
  • Max. Vertical Dig Depth 7'8"

  • LIFT CAPACITIES (lbs.) at 9'10" RADIUS
  • over front, blade down over side
  • 6.6 ft. 1512 1512
  • Ground level 2581 1505
  • -3.3 ft. 2603 1485

  • Call 811 BEFORE you dig!
  • Click to Contact 811

  • Rock Size - Specifications by weight and least dimension
  • Two-man Rock 300 to 600 lbs 13"
  • Three-man Rock 800 to 1200 lbs 16"
  • Four-man Rock 1500 to 2200 lbs 18"
Daily:$300.00
Weekly:$1,200.00
Monthly:$3,000.00
for a period of
