EXCAVATOR, 12' - 12,500 LB KX057

Where to find EXCAVATOR, 12 - 12,500 LB KX057 in Mycity
Where to find EXCAVATOR, 12 - 12,500 LB KX057 in Mycity
Where to find EXCAVATOR, 12 - 12,500 LB KX057 in Mycity

Image for reference only
Actual item may look different
Click on image for larger view

  • Where to find BOND 6 FT. BAR in Mycity
  • Where to find BOND 6 FT. BAR in Mycity
  • Where to find BOND 6 FT. BAR in Mycity

Click on above thumbnails for alternate view

Product Information

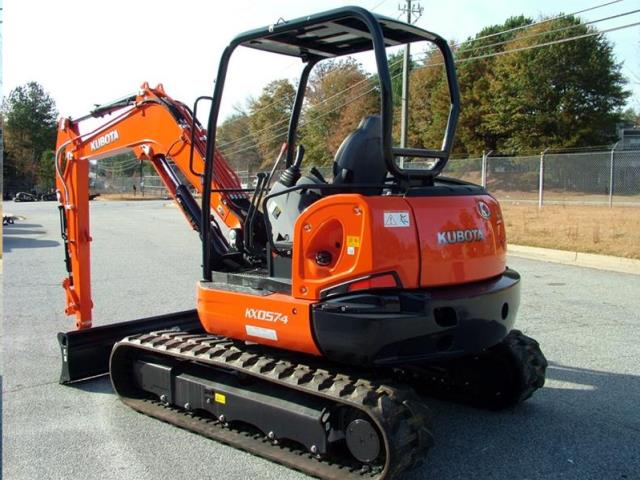

  • Kubota KX057

  • Buckets Available: 12", 24" (with teeth) / 48" Cleanout (no teeth)
  • Unit is equipped with hydraulic thumb

  • Operating Weight (lbs.) 12,494
  • Max. Dig Depth 12'6"
  • Width 6'6"
  • Height 8'5"

  • Length (transport) 18'6"
  • Ground Clearance 13"
  • Min. Front Swing Radius (80o boom swing) 5'8"
  • Tail Swing Radius 4'10"
  • Max. Dump Height 13'7"
  • Max. Dig Height 18'11"
  • Max. Reach at Ground Level 19'8"
  • Max. Vertical Dig Depth 7'8"
  • Max. Dig. Depth w/ 2 ft. Flat Bottom 12'5"
  • Max. Dig. Depth w/ 8 ft. Flat Bottom 11'2"
  • Max. Bucket Dig Force (lbs.) 10825
  • Max. Arm Dig Force (lbs.) 5027

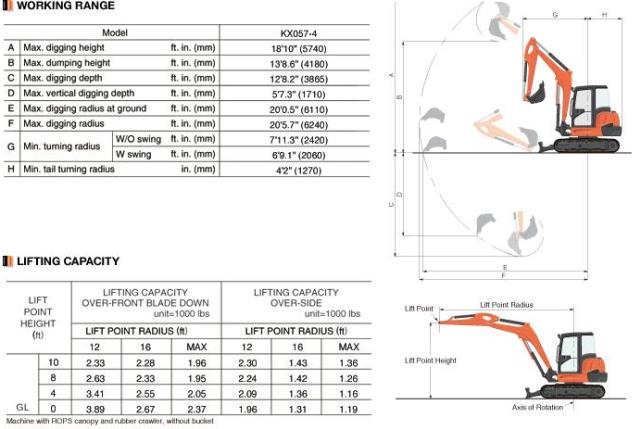

  • LIFT CAPACITIES (lbs.) at 9'10" RADIUS
  • over front, blade down over side
  • 6.6 ft. 2806 2488
  • Ground level 4634 2149
  • -3.3 ft. 4561 2110

  • Call 811 BEFORE you dig!
  • Click to Contact 811

  • Rock Size - Specifications by weight and least dimension
  • Two-man Rock 300 to 600 lbs 13"
  • Three-man Rock 800 to 1200 lbs 16"
  • Four-man Rock 1500 to 2200 lbs 18"
Daily:$375.00
Weekly:$1,500.00
Monthly:$3,750.00
for a period of

* Prices are subject to change.
