EXCAVATORS

EXCAVATOR, 15' - 19,500 LB KX080

Where to find EXCAVATOR, 15 - 19,500 LB KX080 in Mycity
Where to find EXCAVATOR, 15 - 19,500 LB KX080 in Mycity
Where to find EXCAVATOR, 15 - 19,500 LB KX080 in Mycity

Image for reference only
Actual item may look different
Click on image for larger view

  • Where to find BOND 6 FT. BAR in Mycity
  • Where to find BOND 6 FT. BAR in Mycity
  • Where to find BOND 6 FT. BAR in Mycity

Click on above thumbnails for alternate view

Product Information

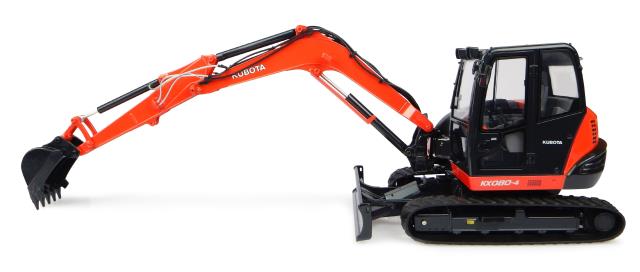

  • Kubota KX080-4

  • Bucket Available: 18", 24", 36" (with teeth) / 48" Cleanout (no teeth)
  • Unit is equipped with hydraulic thumb

  • Operating Weight 19,500 lbs.
  • Maximum Digging Depth 15'
  • Width 7'3"
  • Height 8'4"

  • Length 21' 2"

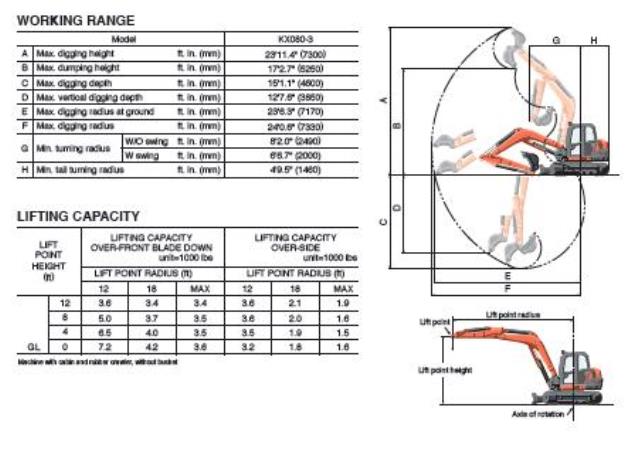

  • Maximum Digging Radius 24'
  • Maximum Digging Height 17' 2"
  • Maximum Dumping Height 17' 2"
  • Max. Vertical Digging Depth 12' 7"
  • Max. Front Turning Radius 8'2"
  • At Right Boom Swing 7'3"
  • Bucket Force - Standard 14,730 lb
  • Lifting Capacities - (See Kubota for specific info)
  • 3,400 lbs all the way OUT over blade (Ground Level)
  • 7,000 lbs all the way IN over blade (Ground Level)
  • Fuel Capacity 30.4 gallons

  • Call 811 BEFORE you dig!
  • Click to Contact 811

  • Ecology Block weight - 3,600 lbs

  • Rock Size - Specifications by weight and least dimension
  • Two-man Rock 300 to 600 lbs 13"
  • Three-man Rock 800 to 1200 lbs 16"
  • Four-man Rock 1500 to 2200 lbs 18"
Daily:$450.00
Weekly:$1,800.00
Monthly:$4,500.00
for a period of

* Prices are subject to change.
