EXCAVATOR, 7' MINI 4,000 LB U17

Where to find EXCAVATOR, 7 MINI 4,000 LB U17 in Mycity
Where to find EXCAVATOR, 7 MINI 4,000 LB U17 in Mycity
Where to find EXCAVATOR, 7 MINI 4,000 LB U17 in Mycity

Image for reference only
Actual item may look different
Click on image for larger view

  • Where to find BOND 6 FT. BAR in Mycity
  • Where to find BOND 6 FT. BAR in Mycity
  • Where to find BOND 6 FT. BAR in Mycity

Click on above thumbnails for alternate view

Product Information

  • Kubota U17

  • Buckets Available: 12" or 18" (w/ teeth) / 24" Cleanout (No teeth)
  • Unit is equipped with hydraulic thumb

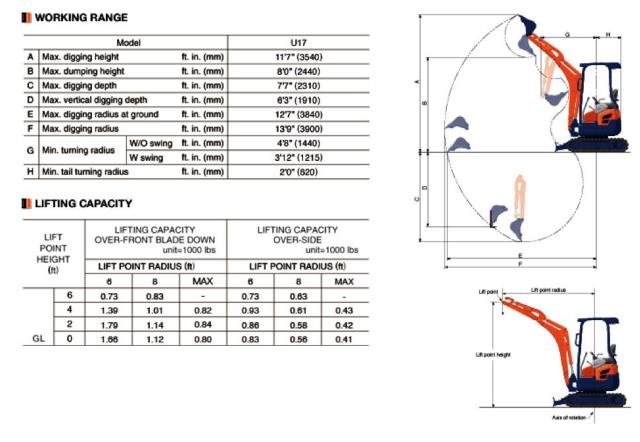

  • Operating Weight (lbs.) 3,850
  • Max. Dig Depth - 7'
  • Width Tracks In 3'3"
  • Width Tracks Out 4'2"
  • Height 7'6"

  • Length (transport) 11' 1"
  • Max. Dig Height 11' 10"
  • Max. Dump Height 8' 5"
  • Max. Reach at Ground Level 12' 4"
  • Max. Vertical Dig Depth 5' 10"

  • LIFT CAPACITIES (lbs.) at 6' RADIUS
  • over front, blade down over side
  • 6 ft. 730 730
  • Ground level 1660 830

  • Call 811 BEFORE you dig!
  • Click to Contact 811

  • Rock Size - Specifications by weight and least dimension
  • Two-man Rock 300 to 600 lbs 13"
  • Three-man Rock 800 to 1200 lbs 16"
  • Four-man Rock 1500 to 2200 lbs 18"
4 Hour:$215.00
Daily:$250.00
Weekly:$1,000.00
Monthly:$2,500.00
for a period of

* Prices are subject to change.
