MATERIAL HANDLING

FORKLIFT, REACH ALL TERRAIN 19'

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Product Information

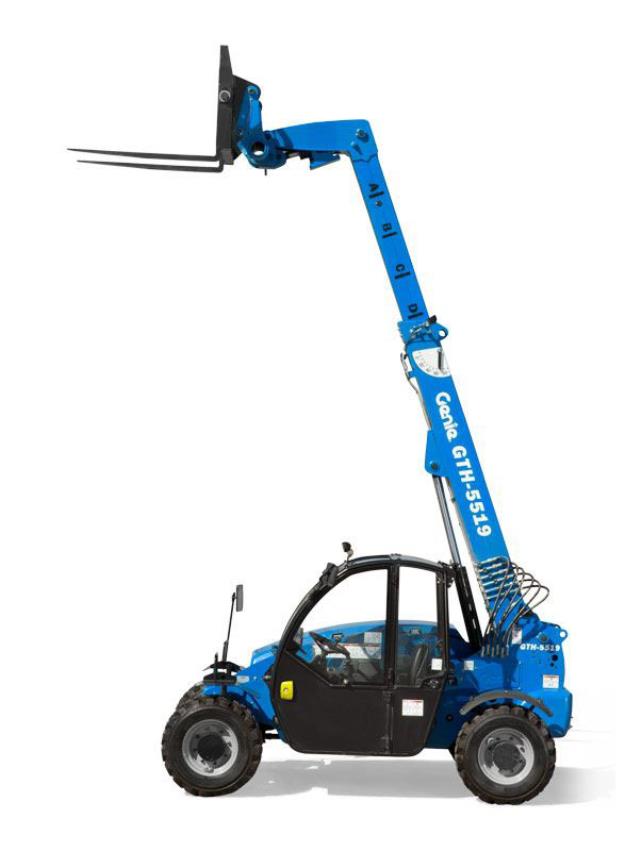

GENIE TELEHANDLER GTH-5519
Maximum lift height 18 ft 10 in
Reach 11 ft 3 in, Reach at maximum height 1 ft 10 in
Height, stowed 6 ft 4 in, Length, stowed (without forks) 12 ft 3 in
Width 5 ft 11 in, Wheelbase 7 ft 6 in
Ground clearance, center 1 ft 2 in, Ground clearance, axle 10 in,
Fork Length 47 in, Fork Extensions are not available for this lift,
Fork cross section 2 x 4 in (0.05 x 0.10 m)
Weight* 10,400 lbs

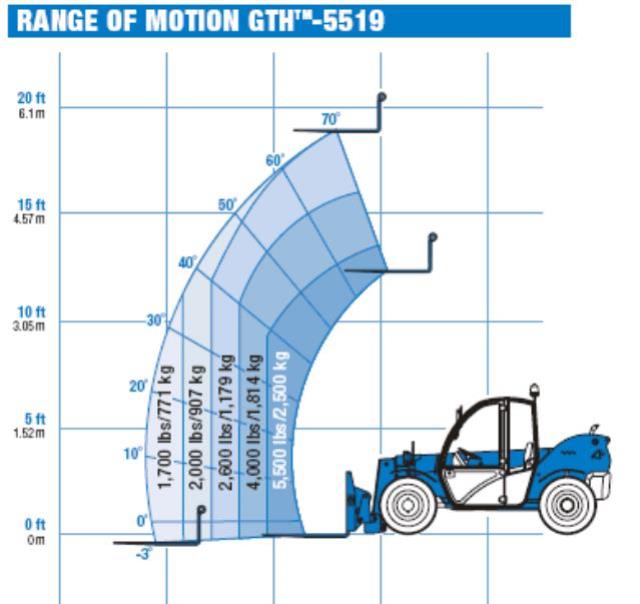

PRODUCTIVITY
Maximum lift capacity 5,500 lbs
Lift capacity at maximum height 2,600 lbs, Lift capacity at maximum reach 1,700 lbs
Drive speed 15 mph
Draw bar pull 10,250 lbs
Turning radius, inside (4WS) 5 ft 6 in, Turning radius, outside (4WS) 11 ft
Auxiliary hydraulic flow 16 gpm
Auxiliary hydraulic pressure 3,915 psi (270 bar)
Tires, standard size 12 X 16.5 in, 10 ply
POWER
Power source Deutz F4M2011 4 cylinder diesel 63 hp
Hydraulic tank capacity 19 gal 70 liters, Hydraulic system capacity (w/tank) 28 gal
Fuel tank capacity 16 gal
