MATERIAL HANDLING

FORKLIFT, REACH ALL TERRAIN 36'

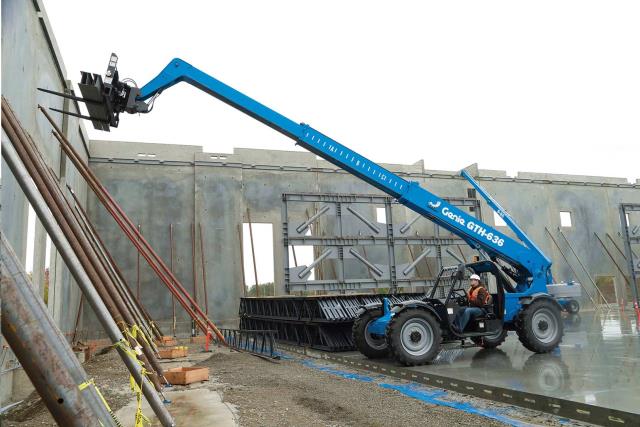

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Product Information

GENIE TELEHANDLER GTH-636
Maximum lift height 36 ft
Reach 21 ft 11 in, Reach at maximum height 21 ft 10 in
Height, stowed 7 ft 10 in, Length, stowed (without forks) 17 ft 10 in
Width 7 ft 11 in, Wheelbase 10 ft 11 in
Ground clearance, center 1 ft 3 in, Ground clearance, axle 1 ft 5 in,
Fork Length 47 in, Fork Extensions are not available for this lift,
Fork cross section 2 x 4 in (0.05 x 0.10 m)
Weight 17,100 lbs
PRODUCTIVITY

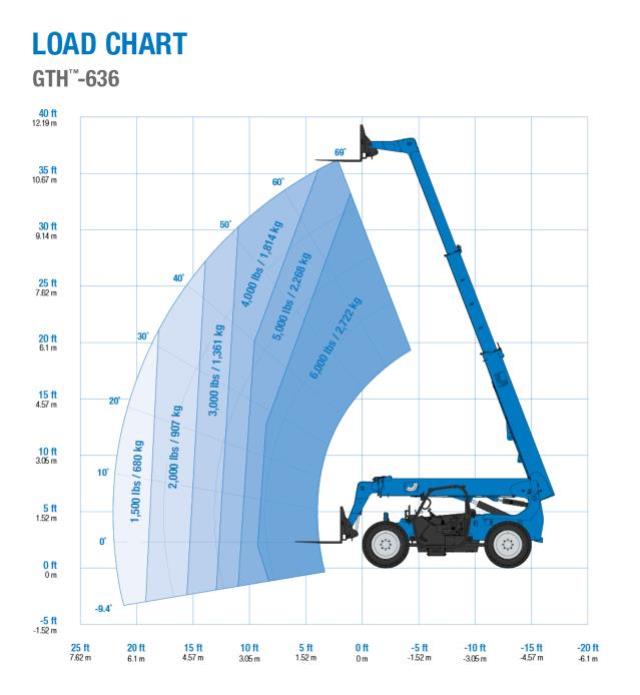

Maximum lift capacity 6,000 lbs
Lift capacity at maximum height 5,000 lbs, Lift capacity at maximum reach 1,500 lbs
Drive speed 18 mph
Draw bar pull 15,100 lbs
Turning radius, outside (4WS) 13 ft 4"
Auxiliary hydraulic flow 15 gpm
Auxiliary hydraulic pressure 3,000 psi (270 bar)
Tires, standard size 13 X 28 in, 12 ply
POWER
Power source Deutz TD 2.9 L4 Turbo Charged Diesel 74 hp
Hydraulic tank capacity 34 gal Hydraulic system capacity (w/tank) 46.5 gal
Fuel tank capacity 27 gal

* Prices are subject to change.
