BOOM LIFTS

LIFT, BOOM 34' 4WD 2 MAN DIESEL

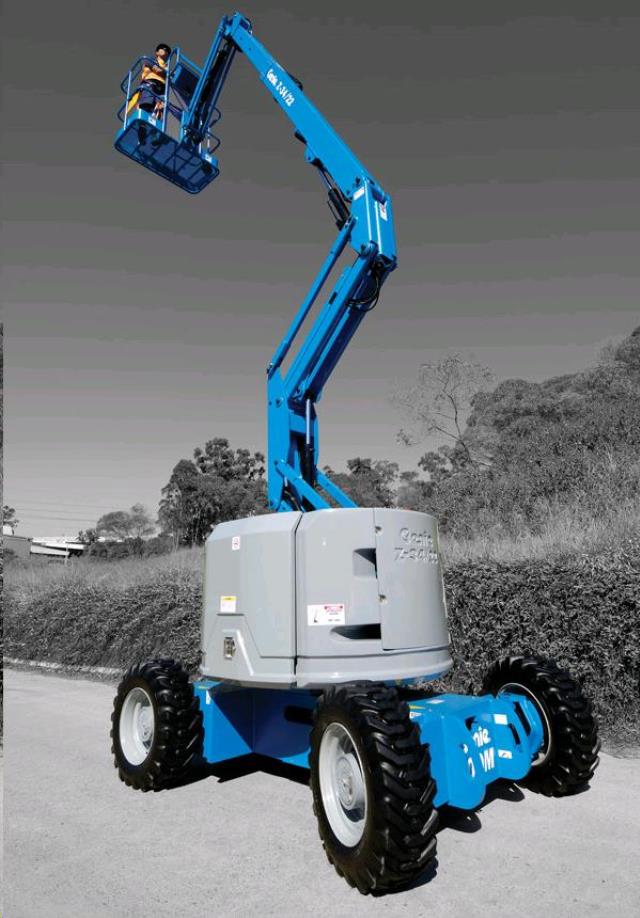

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Product Information

GENIE Z34/22 4X4
Height - Working 40 ft 10 in, Platform 34 ft 10 in
Stowed Height - 6 ft 9 in, Length - 18 ft, Width 6 ft 1 in
Platform - length 2 ft 6 in width 4 ft 8 in
Ground clearance - center 6.5 in
Weight - 4x4 10,450 lbs, lift capacity 500 lb
Gradeability - 45% Stowed (in lift mode the machine is designed to work on firm, level surfaces only!)
Drive speed - Stowed 3 mph, Raised 0.6 mph
Horizontal reach max 22 ft 3 in, up and over clearance 15 ft 1 in
Turning radius - inside 5 ft 11 in
Turntable rotation 355 degrees
Platform rotation 180 degrees
Power source Diesel, Fuel tank capacity 9.3 gal

NIFTYLIFT SP34
Height - Working 40 ft, Platform 33 ft 6 in
Stowed Height - 6 ft 5 in, Length - 13 ft 5 in, Width 5 ft 3 in
Platform - length 3 ft 7 in width 2 ft 2 in
Weight - 4x4 7,650 lbs, lift capacity 500 lb
Gradeability - 30% (17 degrees) Stowed (in lift mode the machine is designed to work on firm, level surfaces only!)
Drive speed - Stowed 2.2 mph
Horizontal reach max 20 ft
Turning radius - 11 ft 2in (outside)
Power source Diesel / Electric (battery)
** Delivered out of our Greenlake Store
