BOOM LIFTS

LIFT, BOOM 45' 4WD 2 MAN DIESEL

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Product Information

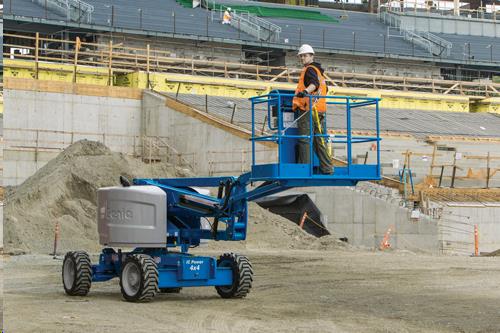

GENIE Z45 /25 RT
Height - Working 51 ft 8 in, Platform 45 ft 10 in
Stowed Height - 6 ft 10 in, Length - 18 ft, Width 7 ft 4 in
Platform - length 30 in, width 72 in
Ground clearance - center 13 in (min 10 in)
Weight - 4x4 14,300 lbs, lift capacity 500 lb
Gradeability - 45% Stowed (in lift mode the machine is designed to work on firm, level surfaces only!)
Drive speed - Stowed 4.5 mph, Raised 0.6 mph
Horizontal reach max 24 ft 6 in, up and over clearance 23 ft 4 in
Turning radius - inside 5 ft 6 in
Turntable rotation 359 degrees
Platform rotation 180 degrees
Power source Diesel, Fuel tank capacity 17 gal
** Delivered out of our Shoreline Store only.
