SPLITTER, LOG 20 TON

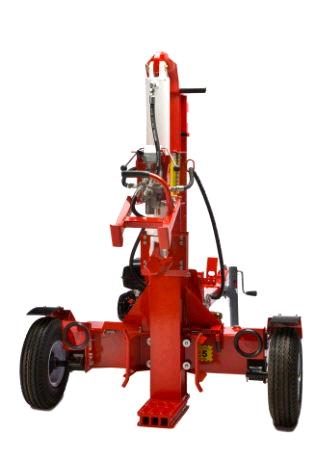

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Product Information

BARRETO - MODEL 920
Beam: 6" x 25 lbs.
Wedge: High Carbon Wear-Alloy
Cylinder: 24" Stroke, 2" Rod
Log Opening: 25"
Hydraulic Tank: 7 gallon system capacity
System Pressure: 2,750 psi
Control Valve: Detent, Auto Return
Length: 102"
Width: 53"
Height: 48"
Weight: 790 lbs.
Tire Size: 18 x 5.7 x 8
DESIGN
Built specifically for the demands of the rental market, the Barreto log splitter is the industrial standard. With a 790 lb. frame, a high carbon wear-alloy wedge, and a 6 x 25 lb. wide flange beam, this splitter is built to endure. The knife plate features high wear nylon pads. Torsion axle suspension reduces bounce and improves tracking and towability when transporting. The cushion mounted log cradle is designed to snap out of the way when using the splitter in the vertical position. A rubber bump stop protects the splitter when transitioning from vertical to horizontal and spring loaded lock bars secure the splitter in place. The engine is mounted on rubber isolators to protect from vibration when towing or operating.
CONTROLS
Safety is standard with a mandatory two-handed control system, cushion mounted log cradle, and spring loaded cleaning wedge.
